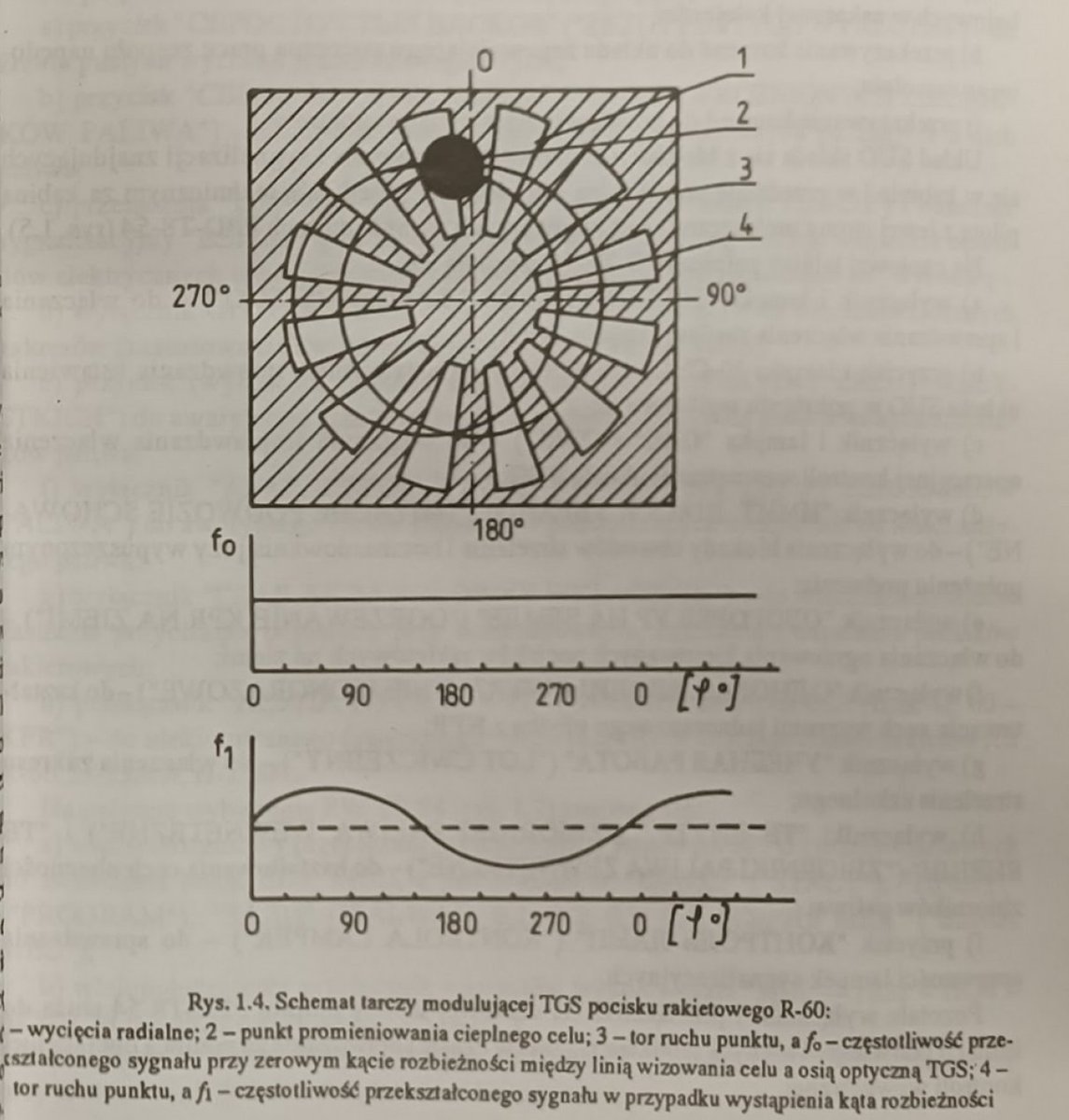

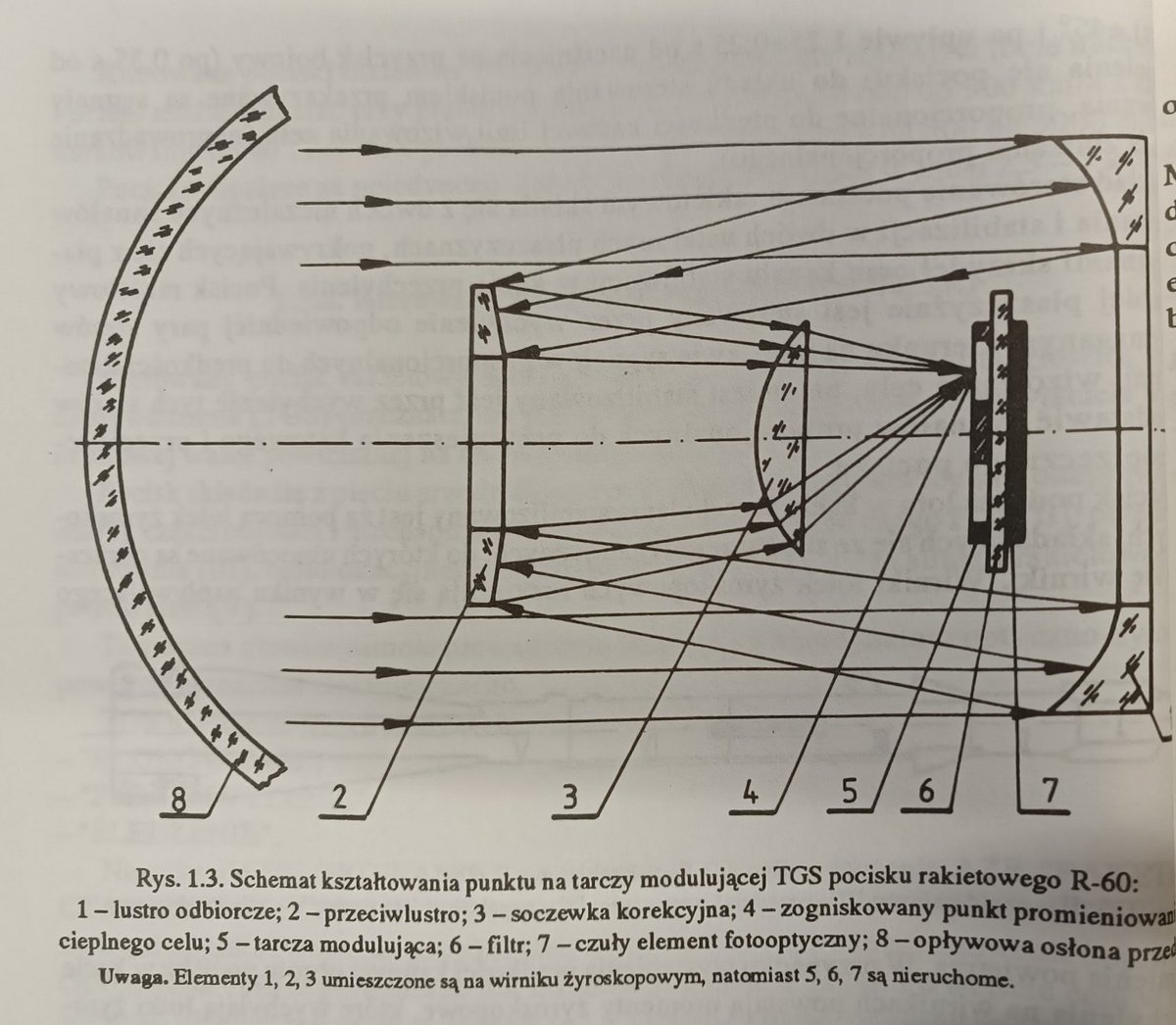

General principle of R-60 missile IR seeker operation. This is very similar to majority of cold-war era IR AA missiles. A spinning mirror system projects the IR signature through a static modulating disc (example in prior post), the remaining signal is then picked up by a single…

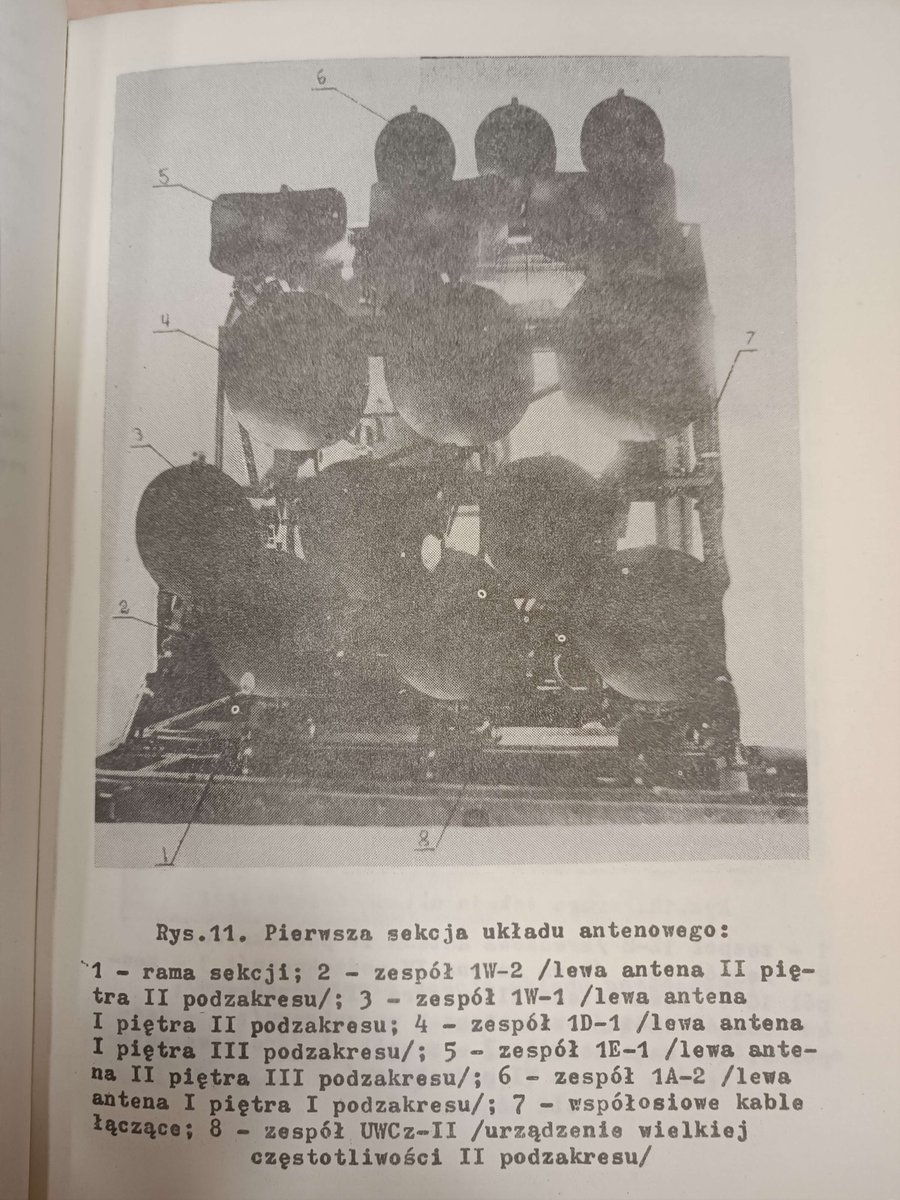

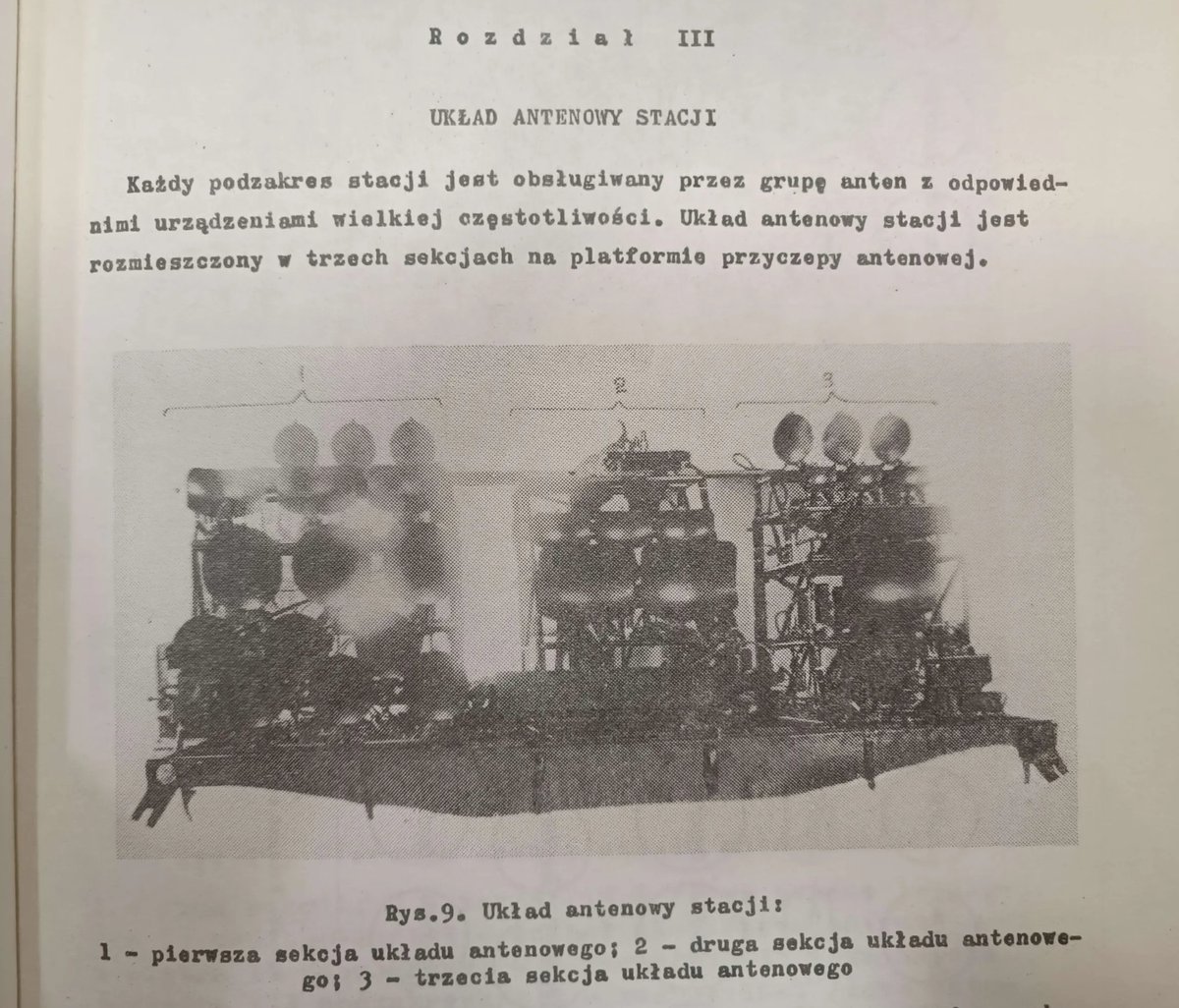

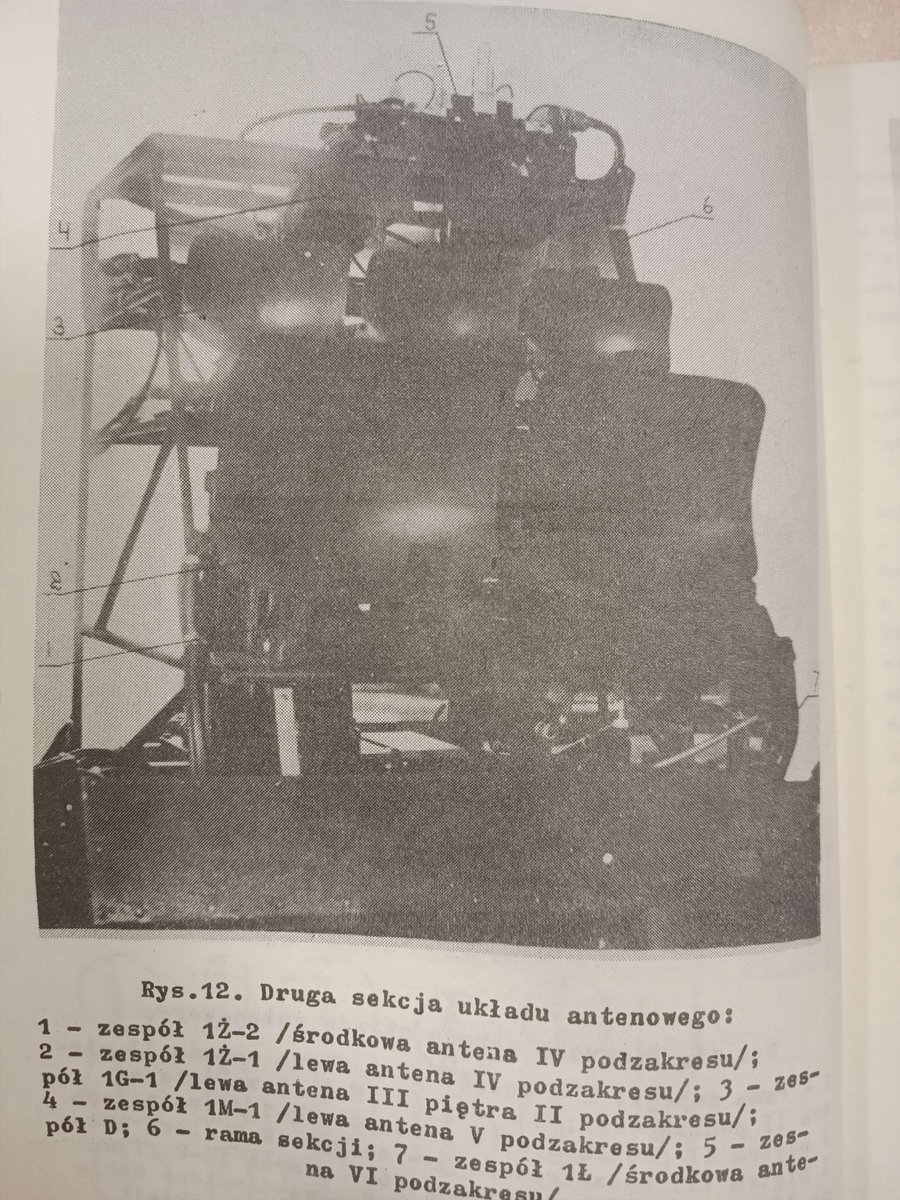

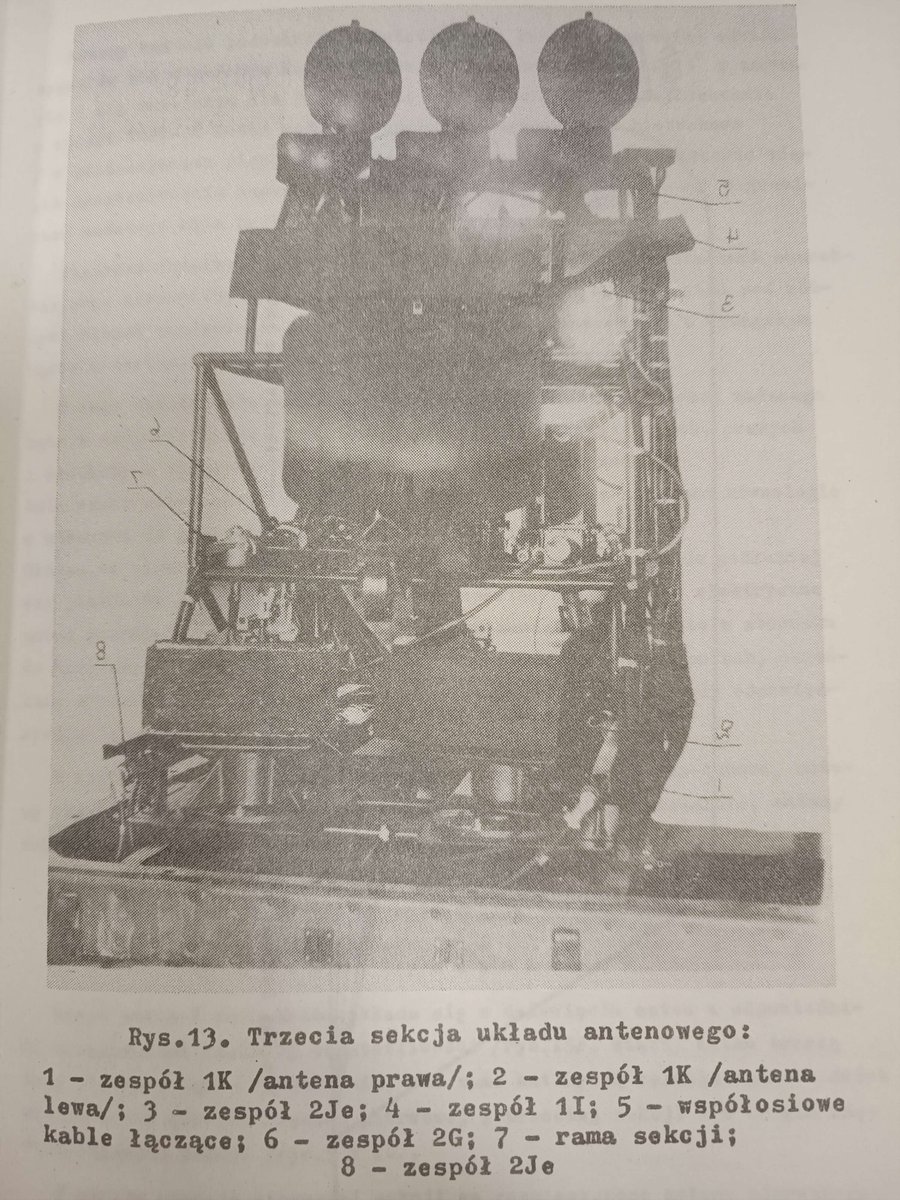

1968 soviet ground based ELINT system antenna setup. It deals with needing to cover a wide range of sub-bands by simply listening to all of them at once via separate receivers. (this whole setup would be typically truck mounted on a rotating assembly)

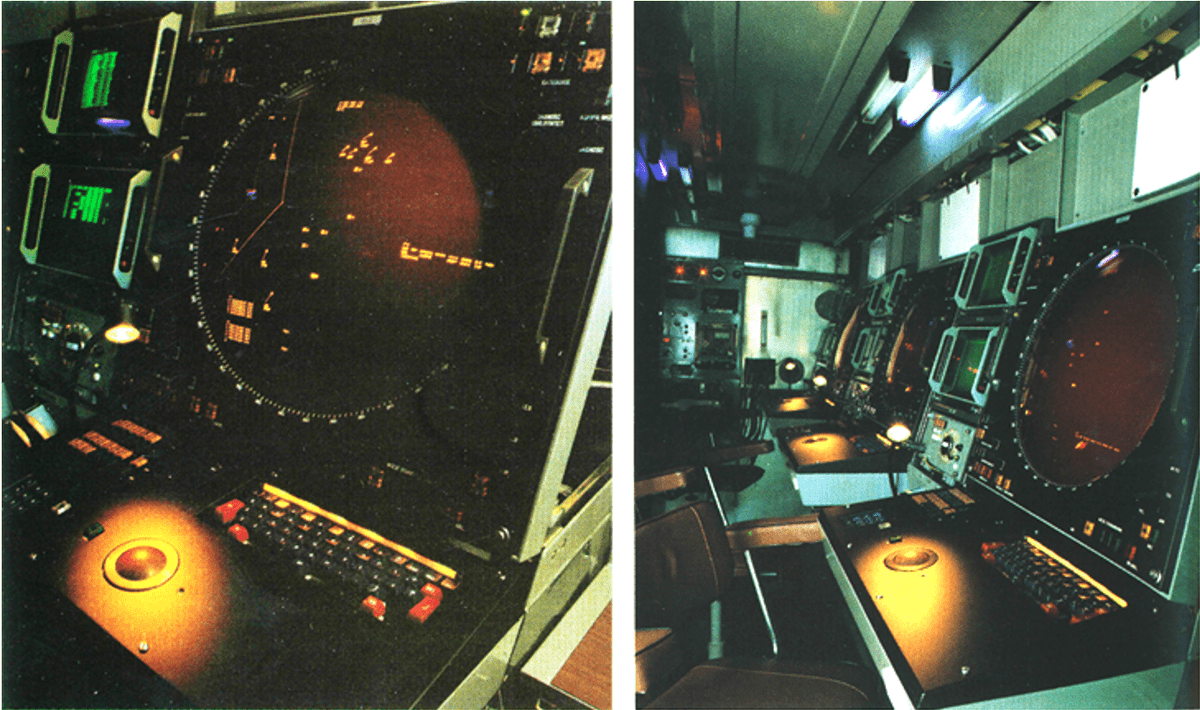

Late 1970's air defense command and control systems consoles (a thread about some of them will come eventually).

MiG 23-01 STOL demonstrator

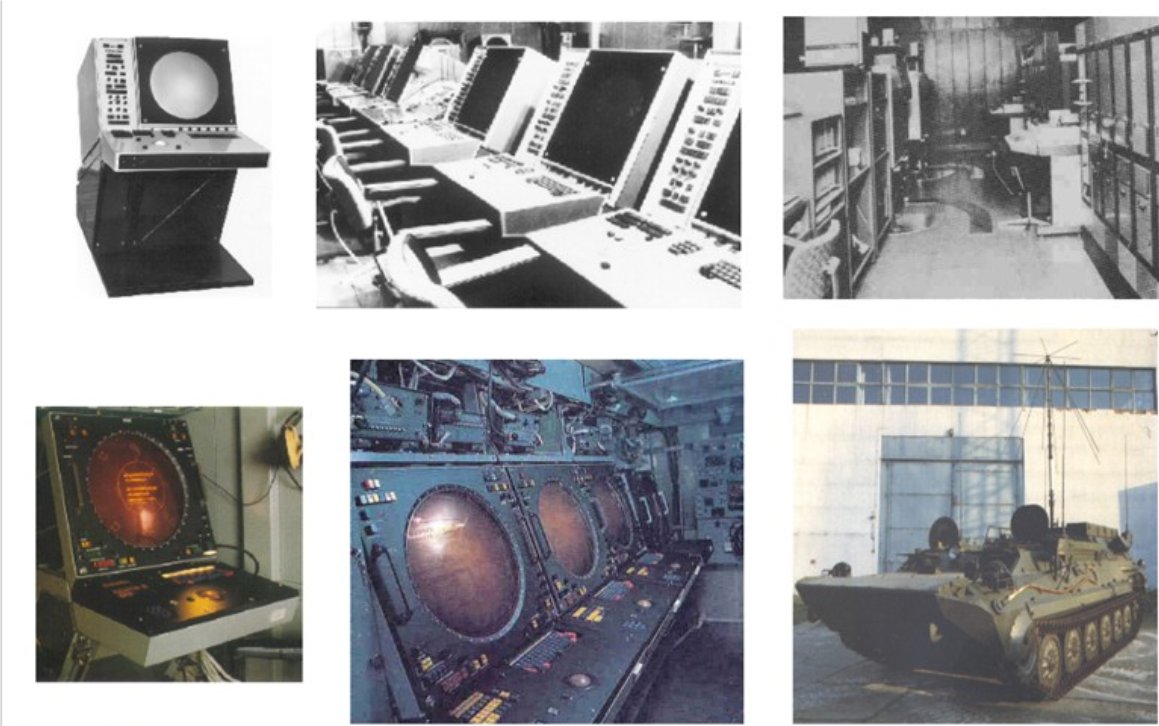

1S32 Krug FCR interior.
